Bipolar circuit breaker

This bipolar circuit breaker is according to the EN 60934 standard and meets the NF F 62-001 standard (railway rolling stock) only for the AN and AS curves.

The most frequent uses for this circuit breaker are protection :

  • Single phase alternating current circuits PHASE + NEUTRAL (230 Volts 50/60 Hz)
  • PHASE + PHASE circuits (400 Volts 50/60 Hz)

Other applications of the bipolar diruptor :

  • In direct current (up to 150 Volts per pole according to models)
  • In protection of 2 different circuits, 2 poles can have different curves (thermal, also thermal-magnetic or pure magnetic) and different sizes (from 0.04 to 50 Amps)
  • In remote tripping control through one pole.

Different mounting and fixing possibilities (more information below technical specifications)

Référence 7212FS1869

Disjoncteur-DIRUPTOR-reference-7212FS1869

Référence 7222FS2082/2.5

Disjoncteur-DIRUPTOR-reference-7222FS2082-2.5

Référence 7222204 1AN81

Disjoncteur-DIRUPTOR-reference-72222041AN81

Référence 7222204 5T80

Disjoncteur-DIRUPTOR-reference-72222045T80

Disjoncteur-DIRUPTOR-reference-7212FS0884
Reference Designation
7212101 7.5C84 DISJ. DIRUPTOR BI MT 7.5A/D
7212101.5C DISJ. DIRUPTOR BI MT 0.5A/D
7212104 10D DISJ. DIRUPTOR BI MT 10A/D
7212104 16D DISJ. DIRUPTOR BI MT 16A/D
7212104 20D DISJ. DIRUPTOR BI MT 20A/D
7212104 3D DISJ. DIRUPTOR BI MT 3A/D
7212204 2AN84 DISJ. DIRUPTOR BI MT 2A
7217402 15D DISJ. DIRUPTOR BI MT 15A/D
7220707 16D DISJ. DIRUPTOR BI MT 16A/D
7220707 25D DISJ. DIRUPTOR BI MT 25A/D
7220707 2T8420 DISJ. DIRUPTOR TRI TH 2.4A
7220707 3T8420 DISJ. DIRUPTOR BI TH 3A
7220707 40D DISJ. DIRUPTOR BI MT 40A/D
72207071.5T0.5 DISJ. DIRUPTOR BI T 1.5
7220FS1892/2.5 DISJ. DIRUPTOR BI TH 2,5A
7220FS1892/3 DISJ. DIRUPTOR BI TH
7221101 2T84 DISJ. DIRUPTOR BI TH 2A
72211011.2T84 DISJ. DIRUPTOR BI TH 1.2A
7221104 10D DISJ. DIRUPTOR BI MT 10A/D
7221104 10D10 DISJ. DIRUPTOR BI MT 10A/D
7221104 15T DISJ. DIRUPTOR BI TH 15A
7221104 16D DISJ. DIRUPTOR BI MT 16A/D
7221104 1C10 DISJ. DIRUPTOR BI MT 1A
7221104 3DXW19 DISJ. DIRUPTOR BI MT 3A/D
7221109 10D DISJ. DIRUPTOR BI MT 10A/D
7221109 3D19 DISJ. DIRUPTOR BI MT 3A/D
7221109 4D19 DISJ. DIRUPTOR BI MT 4A/D
7221204 5T80 DISJ. DIRUPTOR BI TH 5A
7222101 10T8447 DISJ. DIRUPTOR BI TH 10A
7222101 16T8447 DISJ. DIRUPTOR BI TH 16A
7222101 2T8447 DISJ. DIRUPTOR BI TH 2A
7222101 3C8447 DISJ. DIRUPTOR BI MT 3A
7222101 3T8447 DISJ. DIRUPTOR BI TH 3A
7222101 5CHP58 DISJ. DIRUPTOR HP BI MT 5A/C
7222104 10C DISJ. DIRUPTOR BI MT 10A/C
7222104 10D DISJ. DIRUPTOR BI MT 10A/D
7222104 10D10 DISJ. DIRUPTOR BI MT 10A/D
7222104 10T DISJ. DIRUPTOR BI TH 10A
7222104 10T46 DISJ. DIRUPTOR BI TH 10A
7222104 12D DISJ. DIRUPTOR BI MT 12A/D
7222104 15T DISJ. DIRUPTOR BI TH 15A
7222104 16D DISJ. DIRUPTOR BI MT 16A/D
7222104 16D41 DISJ. DIRUPTOR BI MT 16A/D
7222104 16T DISJ. DIRUPTOR BI TH 16A
7222104 20D DISJ. DIRUPTOR BI MT 20A/D
7222104 20D41 DISJ. DIRUPTOR BI MT 20A/D
7222104 20D75 DISJ. DIRUPTOR BI MT 20A/D
7222104 20T DISJ. DIRUPTOR BI TH 20A
7222104 2C DISJ. DIRUPTOR BI MT 2A/C
7222104 2T DISJ. DIRUPTOR BI TH 2A
7222104 3D DISJ. DIRUPTOR BI MT 3A/D
7222104 4C DISJ.DIRUPTOR BI MT 4A/C
7222104 4D DISJ. DIRUPTOR BI MT 4A/D
7222104 5D DISJ. DIRUPTOR BI MT 5A/D
7222104 6C DISJ.DIRUPTOR BI MT 6A/C
7222104 6D DISJ. DIRUPTOR BI MT 6A/D
7222104 6DUL DISJ. DIRUPTOR BI MT 6A/D
7222104 7.5D DISJ DIRUPTOR BI MT 7,5A
7222104 8D DISJ. DIRUPTOR BI MT 8A/D
7222104.60D DISJ.DIRUPTOR BI MT  0.6A
7222109 2T80 DISJ. DIRUPTOR BI TH 2A
7222109 5AN DISJ. DIRUPTOR BI MT 5A
7222204 10AN DISJ. DIRUPTOR BI MT 10A
7222204 10AS DISJ. DIRUPTOR BI MT 10A
7222204 10T80 DISJ. DIRUPTOR BI TH 10A
7222204 16AN DISJ. DIRUPTOR BI MT 16A
7222204 16AS DISJ. DIRUPTOR BI MT 16A
7222204 16T80 DISJ. DIRUPTOR BI TH 16A
7222204 1AN DISJ. DIRUPTOR BI MT 1A
7222204 1AN81 DISJ. DIRUPTOR BI MT 1A
7222204 1T80 DISJ. DIRUPTOR BI TH 1A
7222204 20AS DISJ. DIRUPTOR BI MT 20A
7222204 25AS DISJ. DIRUPTOR BI MT 25A
7222204 25D DISJ. DIRUPTOR BI MT 25A/D
7222204 25T90 DISJ.DIRUPTOR BI TH 25A
7222204 32AS DISJ. DIRUPTOR BI MT 32A
7222204 32T DISJ. DIRUPTOR BI TH 32A
7222204 3AN DISJ. DIRUPTOR BI MT 3A
7222204 45T DISJ BIPOLAIRE 45A T
7222204 5AN DISJ. DIRUPTOR BI MT 5A
7222204 5AS DISJ. DIRUPTOR BI MT 5A
7222204 5T80 DISJ. DIRUPTOR BI TH 5A
7222204 6AN DISJ. DIRUPTOR BI MT 6A
7222204 8AN DISJ. DIRUPTOR BI MT 8A
72222041.5AN DISJ. DIRUPTOR BI MT 1.5A
7222307 1AN81 DISJ. DIRUPTOR BI MT 1A
7222307 25AS DISJ. DIRUPTOR BI MT 25A
7222307 3AN84 DISJ. DIRUPTOR BI MT 3A
7222453 40D DISJ. DIRUPTOR BI MT 40A/D
7223402 10D84 DISJ. DIRUPTOR BI MT 10A/D

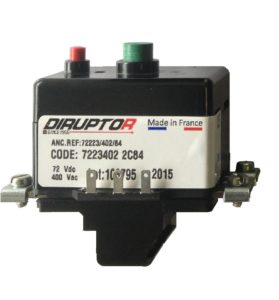

7223402 2C84 DISJ. DIRUPTOR BI MT 2A/C
7223402 4D84 DISJ. DIRUPTOR BI MT 4A/D
7223402 5D84 DISJ. DIRUPTOR BI MT 5A/D
7223402 6D84 DISJ. DIRUPTOR BI MT 6A/D
7223402.25C84 DISJ. DIRUPTOR BI MT 0.25A/C
7223402.25T84 DISJ. DIRUPTOR BI T 0.25A
7229109 3D82 DISJ. DIRUPTOR BI MT 3A/D
7229409 3D82 DISJ. DIRUPTOR BI MT 3A/D

Technical characteristics

NUMBER OF POLES : 2 poles

CONTROL SYSTEM : With or Without trip button “OFF”

MOUNTING :
Plug-in (20A limitation)
Flush-mounting, 2 screws on front face
Flush-mounting, threaded collar for mounting on front face
Snap on DIN asymetrical rail
Push-push, threaded collar for mounting on front face
Without fixation
Snap on DIN symetrical rail
Plug-in base for print circuit

CONNECTION :
Flush mounting models
Fast connections (male) 6,35 x 0,8 at 45° (In _ 15A)
Terminals at 60° screws with clamps for cable up to 1 x 6 mm2 (In _ 20A)
Terminals at 60°, HS M4 screws for cable up to 1 x 6 mm2 (In _ 20A)
Fast connections (male) 6,35 x 0,8 at 90°
Down pillar type terminals, transversal hole (In _ 40A)
Down pillar type terminals, longitudinal hole (In _ 40A)
Terminals, screws with clamps, 1 at 60°. 1 at 90°, for cable from 6 to 16 mm2

Snap on DIN rail models
Flat terminals, screws with clamps (In _ 20A)
Up pillar type terminals, longitudinal hole (In _ 40A)

Without fixation models
Terminals design on request

Plug-in base for print circuit
Fast connections (male) 6,35 x 0,8 at 90°

Plug-in
Pins _ 7, 20 mm between axles (série 7000)

CURVES + RAED CURRENT :
Thermal : 0,04 – 32 A
Thermal-magnetic : 0,10 – 32 A
Magnétic : 14 A eff. 20 A AC max

OPTIONS :
Auxiliary contacts NC
Auxiliary contacts NO
Auxiliary contacts changeover
Special contacts for high peak of current, (thermal release only)
Temperature compensation (thermal 2 to 30A, thermal-magnetic 3 to 20A)
Special adjustment for magnetic release
Red push button “ON”
Knurled nut and counter nut for drilling 14,5 mm
Power contacts delivered with shunt
U.L 1077. Recognized
Diruptor 230/400 VAC with 6 kA/AC short circuit capacity
D.C. Diruptor : one pole rated 110/125 V DC or 2-poles 110/125 V DC per pole
Reinforced tropicalization
Magnetic release only “all or nothing”
Individual checking (with tests report)
Change of temperature class (adjustment at 60° C)
Rated current marked on base (beside screw for adjustment)
Rated current marked on push-button “ON”, at the top or at the bottom
One pole rated 72 V DC max. nominal (90V test) 230 V AC or multipole 400 V AC
One pole rated 110 V DC max. nominal (137V test) 230 V AC or multipole 400 V AC
